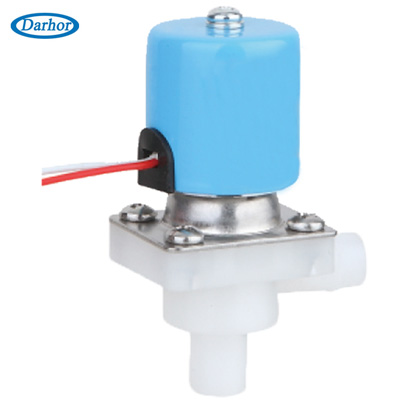

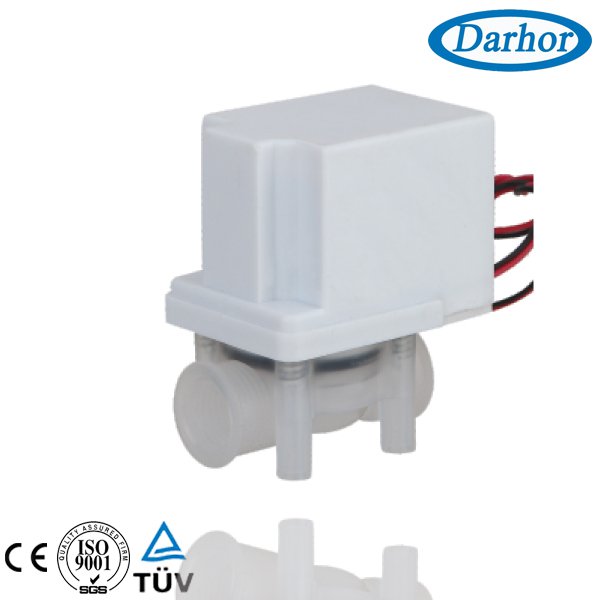

Small plastic solenoid valve

Small plastic solenoid valve


Product name:Small plastic solenoid valve
Item:USD3~USD6
Details:
DHWS10 Series Small diaphragm plastic solenoid valve 2WAY NC
Characteristic: 1.Direct acting miniature construction at low power consumption
                        2.Food class body material available for RO system, Washer, miller, etc
Medium:           Air, Water, etc
Temperature:   NBR Seal: 14F to 176F, -10 to 80
                        Silicon Rubber Seal: -10℃ to 80℃
Pressure:         DHWS10: 0 ~ 7 bar
DHWA10-04:    0 ~0.5 bar
Port Size:         See data below
Port Thread:     BSPP, BSPT, NPT
Orifice (mm):    10mm
Voltage:            DC - 12V, 24V
                         AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
                         Tolerance: +/- 10%
Coils :               SA41B,6VA(AC),6W(DC),IP65,100%ED
Material:           Body – Nylon (food class)
                         Seal -VITON, NBR, EPDM
                         Armature Tube - Stainless Steel 304
                         Plunger - Stainless Steel 430F
                         Stop -SS430F
                         Springs - SS 304
DHWS10-01SC
Media:           Water, air, oil, etc.
Media TEP:    -10℃ to 80℃
Body:            POM
Pre:              0-8.0 Bar
Port:             PE pipe with φ6.35mm outer dia.
Orifice:          DN10
Seal:             NBR, Silicon rubber








[Previous]      [Next]     [ Back ]




Related Products :

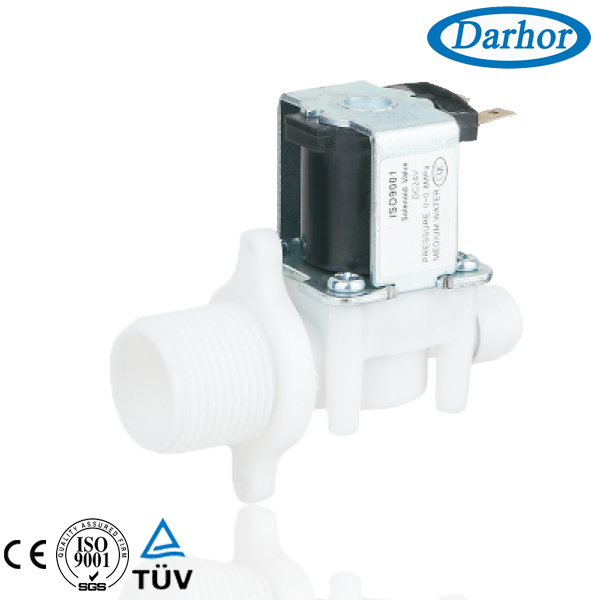

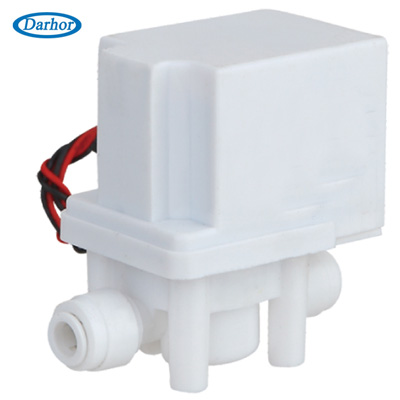

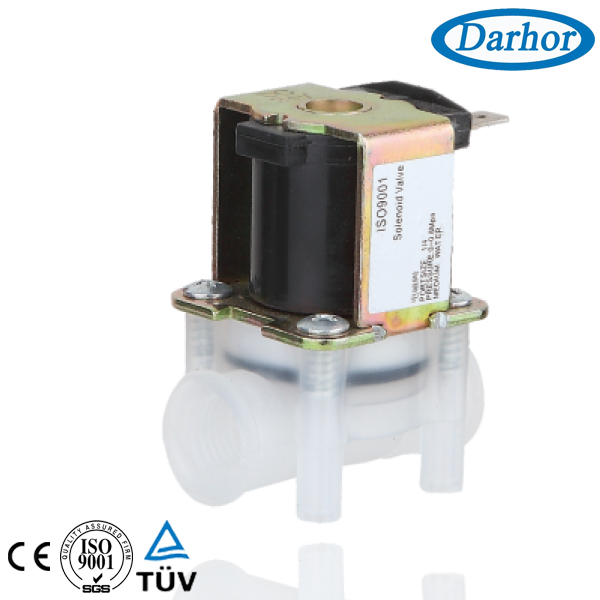

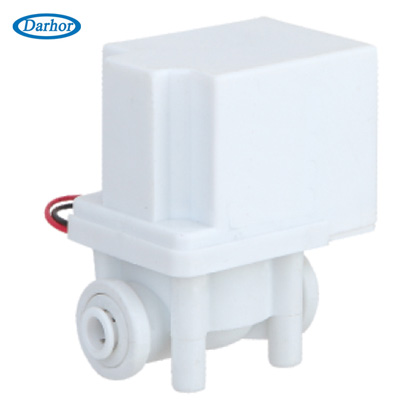

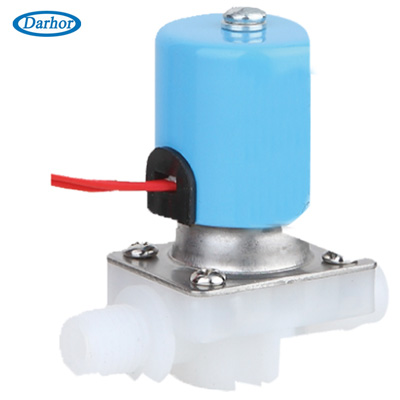

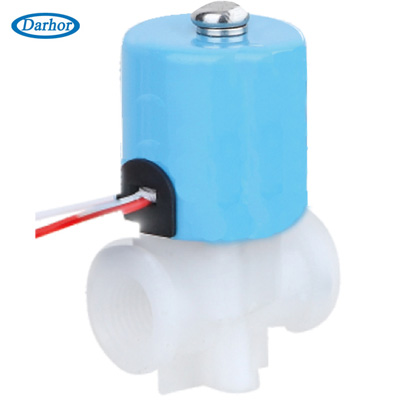

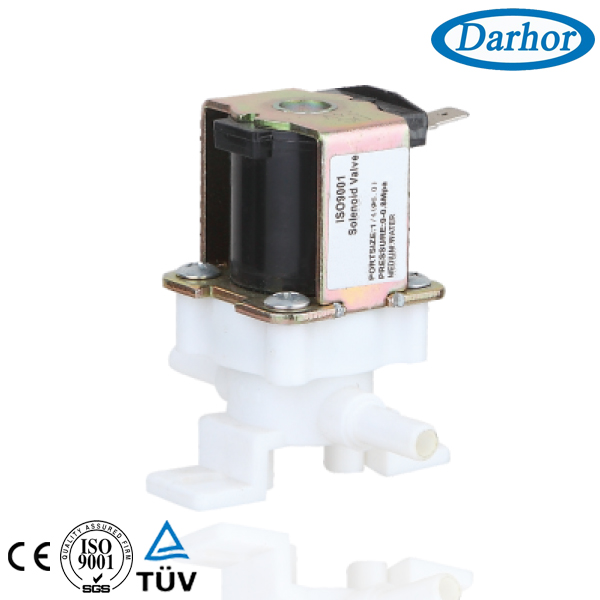

Small plastic solenoid valve
