DHWS1 small plastic solenoid valve

DHWS1 small plastic solenoid valve


Product name:DHWS1 small plastic solenoid valve
Item:USD1.8~USD5
Details:
DHWS1Series Direct acting, small plastic solenoid valve, 2WAY N/C
Characteristic:  1.Direct acting miniature construction at low power consumption
                         2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc
Temperature:    NBR Seal: -10℃ to 80℃
                         EPDM Seal: -10℃ to 80℃
                         VITON Seal: -10℃ to 80℃
Pressure:          DHWS1: 0 ~ 7 bar
Port Size:          See data below
Port Thread:      BSPP, BSPT, NPT,
Orifice (mm):      DHWS1     2.5mm
Voltage:             DC - 12V, 24V
                          AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
                          Tolerance: +/- 10%
Coils:                 Y72B, 6VA (AC), 6W (DC), IP65, 100%ED
                          AB2B, 6VA (AC), 6W (DC), IP65, 100%ED
Material:            Body – Nylon (food class), PP, POM
                          Seal -VITON, NBR, EPDM, Silicon Ruben
                          Armature Tube - Stainless Steel 304
                          Plunger - Stainless Steel 430F
                          Stop -SS430F
                          Springs - SS 304

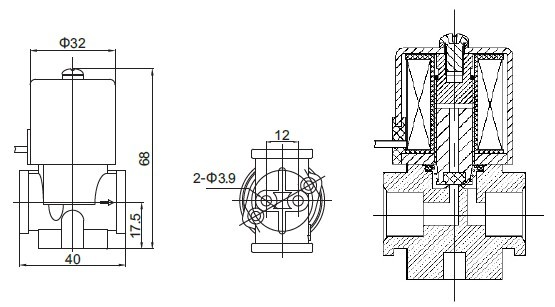

DHWS1 Normally Closed, with Coil AB2B
Media: Water, air, oil, etc.
Media TEP: -10℃~80℃
Body: PP
Pre: 0-7.0 Bar
Port: NPT1/4″
Orifice: DN2.5
Seal: NBR, EPDM, VITON
