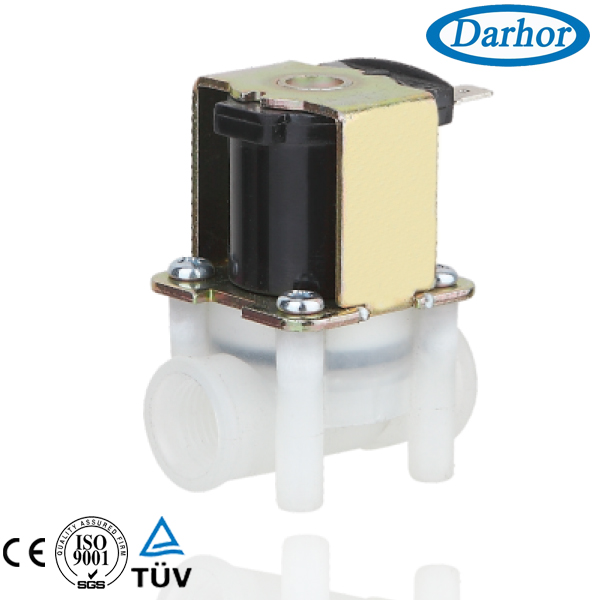

DHWS10-01S Small plastic solenoid valve

DHWS10-01S Small plastic solenoid valve


Product name:DHWS10-01S Small plastic solenoid valve
Item:USD3~USD7
Details:
DHWS10-01S Small diaphragm plastic solenoid valve, 2WAY N/C
Characteristic:   1.Direct acting miniature construction at low power consumption
                          2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc
Temperature:     NBR Seal: 14F to 176F, -10 to 80
                          Silicon Rubber Seal: -10℃ to 80℃
Pressure:           DHWS10: 0 ~ 7 bar
Port Size:           See data below
Port Thread:       BSPP, BSPT, NPT
Orifice (mm):      10mm
Voltage:             DC - 12V, 24V
                          AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
Tolerance:          +/- 10%
Coils :                SA41B,6VA(AC),6W(DC),IP65,100%ED
Material:            Body – Nylon (food class)
                          Seal -VITON, NBR, EPDM
                          Armature Tube - Stainless Steel 304
                          Plunger - Stainless Steel 430F
                          Stop -SS430F
                          Springs - SS 304

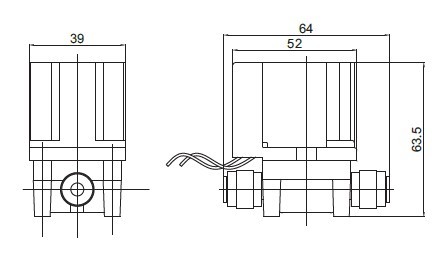

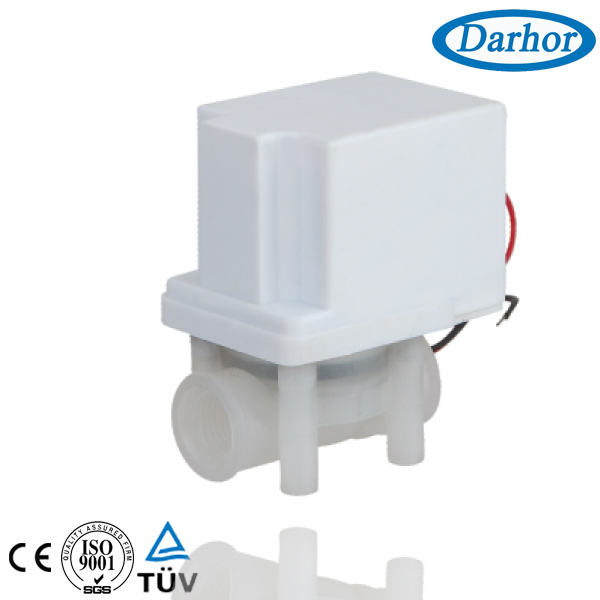

 DHWS10-01S
(18 Seconds AUTO flush)
Media:        Water, air, oil, etc.
Media TEP: -10℃ to 80℃
Body:         POM
Pre:           0-8.0 Bar
Port:          PE pipe with ¢6.35mm outer dia.
Orifice:       DN10
Seal:          NBR, Silicon rubber
