VASAFA10 glass tube flow meter |
|
|
| Product name：VASAFA10 glass tube flow meter |
| Item：USD35-300/piece |
| Details： |

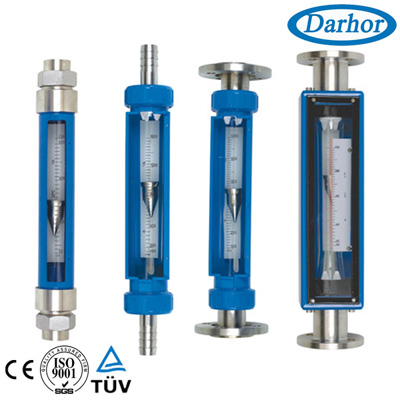

VASAFA10 glass tube flow meter
VA/FA/SA10 series flow meters are manufactured the same as the special technique and equipment of
KROHNE company in German.
In addition to the mm graduation scale and percentage scale on the glass cone, a replaceable scale with
flow units can on request be fitting to the housing. VA10 have screw connection, FA10 have flange connection,
SA10 have hose connedtion.
Technical parameter
1.Measuring range: Water (20 ) 4 15000L/h Air (1.013×105Pa, 20 ) 0.12 300m3/h
2.Range scale: 10: 1
3.Accuracy: 1.0; 1.6
4.Tube: NG60 (no-oriented)
FG60 (oriented)
5. Float : NG60 : A III
FG60 : C III, D III, C III L, D III L, Z III
6. Fluid press: DN15,DN25: 1.0 MPa
DN40: 0.9 MPa
DN50:0.7 MPa
7.Fluid temperature: -20 +60 or 0 +120
Specification
|
DN
(mm)
|
Model
|
Measuring range
|
|
Basic
|
Corosive rsistant
|
Water (20
L/h
|
Air(101325Pa,20)
M3/h
|
|
15
|
VA/SA/FA10-15
|
VA/SA/FA10-15F
|
4-40
6.3-63
10-100
12-120
16-160
20-200
25-250
30-300
36-360
40-400
46-460
63-630
65-650
75-750
|
0.12-1.2
0.2-2
0.3-3
0.4-4
0.5-5
0.6-6
0.8-8
0.9-9
1.2-12
2-20
|
|
25
|
VA/SA/FA10-25
|
VA/SA/FA10-25F
|
40-400
50-500
63-630
80-800
100-1000
120-1200
160-1600
200-2000
250-2500
300-3000
|
1.6-16
2-20
2.5-25
3-30
4-40
5-50
6-60
|
|
40
|
VA/SA/FA10-40
|
VA/SA/FA10-40F
|
160-1600
200-2000
250-2500
300-3000
400-4000
500-5000
|
5-50
6-60
8-80
9-90
12-120
|
|
50
|
VA/SA/FA10-50
|
VA/SA/FA10-50F
|
250-2500
300-3000
400-4000
500-5000
630-6300
800-8000
1000-10000
1500-15000
|
10-100
12-120
16-160
20-200
30-300
|
|
 |
