GA24 glass rotameters |
|
|
| Product name：GA24 glass rotameters |
| Item：USD35-350/piece |
| Details： |

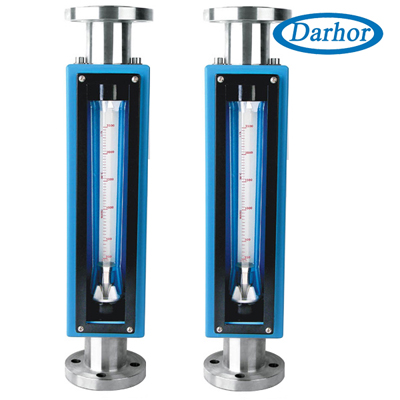

GA24 glass rotameters
This model flow meter is one type of glass rotameter, it has higher measure accuracy, diversiform
connections.We can provide mm gradation scale, percentage scale, replaceable scale with flow units.
Specification
|
DN
(mm)
|
Model
|
Measure Range
|
Working
Pressure(Bar)
|
Temp.
|
|
Water (L/h)
|
Air (m3/h)
|
|
15
|
GA24-15/15F
GA24V-15/15F
|
4-40
6-60
10-100
16-160
25-250
40-400
63-630
|
0.12-1.2
0.3-3
0.5-5
0.8-8
1.2-12
2-20
|
≤10
|
-20℃~120℃
|
|
25
|
GA24-25/25F
GA24V-25/25F
|
63-630
100-1000
160-1600
250-2500
|
2-20
3-30
5-50
8-80
|
≤10
|
|
40
|
GA24-40/40F
GA24V-40/40F
|
160-1600
250-2500
400-4000
|
5-50
8-80
12-120
|
≤9
|
|
50
|
GA24-50/50F
GA24V-50/50F
|
400-4000
630-6300
1000-10000
4000-16000
|
12-120
20-200
30-300
|
≤6
|
|
65
|
GA24-65
GA24V-65
|
2500-25000
8000-40000
|
80-800
240-1200
|
≤4
|
|
80
|
GA24-80
GA24V-80
|
8000-40000
10000-50000
|
240-1200
300-1500
|
≤4
|
GA24 Installation Size (Flange Connection)
|
DN(mm)
|
Window Size a×b
|
L
|
C
|
D
|
E
|
Weight
(Kg)
|
|
15
|
37×302
|
500
|
￠65
|
￠95
|
4－￠14
|
5.3
|
|
25
|
52×294
|
￠85
|
￠115
|
7.8
|
|
40
|
64×278
|
￠110
|
￠145
|
4－￠18
|
10.7
|
|
50
|
94×266
|
￠125
|
￠160
|
16.6
|
|
65
|
124×260
|
￠145
|
￠180
|
24
|
|
80
|
124×260
|
￠160
|
￠200
|
8－￠18
|
GA24V Installation Size (Thread Connection)
|
DN(mm)
|
Window
Size a×b
|
L
|
G
|
C
|
Weight(Kg)
|
|
15
|
37×302
|
420
|
1/2’’F NPT/BSP
|
80
|
3.8
|
|
25
|
52×294
|
1’’F
NPT/BSP
|
105
|
5.4
|
|
40
|
64×278
|
1 1/2’’F
NPT/BSP
|
125
|
8
|
|
50
|
94×266
|
2’’F
NPT/BSP
|
165
|
12.7
|
|
65(80)
|
124×260
|
2 1/2’’F
NPT/BSP
|
186
|
|

|
 |
