FA40VA40 series glass rotameter |
|
|
| Product name：FA40VA40 series glass rotameter |
| Item：USD15-60/piece |
| Details： |

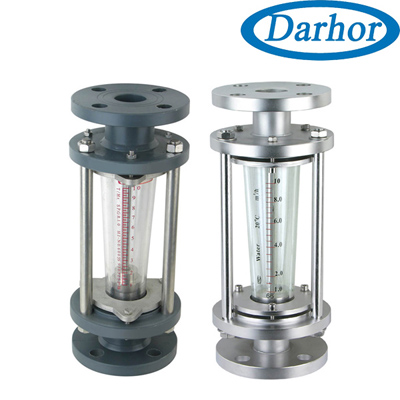

FA40VA40 series glass rotameter
The series of glass rotor flowmeter is an intergrated product by cone-shaped glass tube,
Float, flanges. The installation is easy and the flowmeter is adjustable, the flowmeter is used
In ranges such as semi-conductor chemicals ect.
1) Accuracy: +/- 6%FS
2) Duplicate accuracy: +/- 0.25%FS
3) Range ration: 10;1
4) Maximum pressure: 0.2Mp
5) Maximum temperature:60C
6) Body material: glass
7)tube material: glass
8) Fixed screw material: H62( copper)
9) Tube connection material: ABS or PVC or GRASS
10) Upper and lower adapter bearing: F46
11) O-ring: Silicon Rubber or Fluorin Rubber or Butyl
|
DN
|
Flow Range
|
Pressure(Mpa)
|
|
Water(L/h)
|
Air(NL/min)
|
|
15
|
30-300
|
10-100
|
≤0.8
|
|
60-600
|
20-200
|
|
80-800
|
25-250
|
|
20
|
90-900
|
20-200
|
|
120-1200
|
30-300
|
|
180-1800
|
50-500
|
|
25
|
180-1800
|
50-500
|
|
300-3000
|
100-1000
|
|
480-4800
|
150-1500
|
|
32
|
480-4800
|
200-2000
|
≤0.6
|
|
600-6000
|
250-2500
|
|
720-7200
|
300-3000
|
|
40
|
1-10m³/h
|
18-180Nm³/h
|
|
1.2-12m³/h
|
20-200Nm³/h
|
|
1.5-15m³/h
|
25-250Nm³/h
|
|
50
|
1.2-12m³/h
|
20-200Nm³/h
|
|
1.5-15m³/h
|
25-250Nm³/h
|
|
1.8-18m³/h
|
30-300Nm³/h
|
|
65
|
1.8-18m³/h
|
25-250Nm³/h
|
≤0.4
|
|
3-30m³/h
|
35-350Nm³/h
|
|
4-40m³/h
|
40-400Nm³/h
|
|
80
|
4-40m³/h
|
40-400Nm³/h
|
|
5-50m³/h
|
50-500Nm³/h
|
|
6-60m³/h
|
60-600Nm³/h
|
|
100
|
6-60m³/h
|
60-600Nm³/h
|
|
7-70m³/h
|
70-700Nm³/h
|
|
10-100m³/h
|
90-900Nm³/h
|
|
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
L
|
260
|
340
|
340
|
340
|
340
|
340
|
390
|
390
|
410
|
|
D
|
150
|
200
|
200
|
200
|
200
|
200
|
250
|
250
|
250
|
|
H
|
95
|
105
|
115
|
135
|
150
|
160
|
180
|
185
|
205
|
|
d
|
65
|
75
|
85
|
100
|
110
|
125
|
145
|
150
|
170
|
|
f
|
14
|
14
|
14
|
14
|
14
|
14
|
14
|
18
|
18
|
|
|
|
 |
