DFG-4T flowmeter(old modle:LZM-4T)

Product name：DFG-4T flowmeter(old modle:LZM-4T)

Item：

Details：

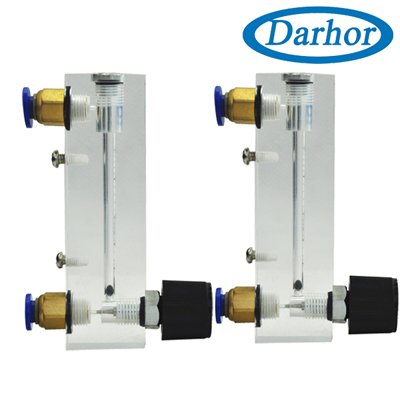

DFG4T flowmeter

The flowmeter bodies are cut and precision machined from solid, clear acrylic plastic
blocks. This construction not only produces a handsome finished product, but permits complete
visual inspection. As a result, the flowmeters are especially popular for medical and laboratory
equipment applications.

Scales are easy to read - The front scale location and white background provides excellent
visibility. The direct reading scales are hot stamped into the plastic and will not wear off. Mid-range
calibration is established with a master flowmeter.

Durable and attractive construction - The machined acrylic bodies of the flowmeters are
practically unbreakable. The tapered bore is precision machined to a smooth surface that provides
perfect visibility of the indicating float. The DFG 4T.6T.8T models are available with either brass
or stainless steel inlet and outlet connections and are tapped for 1/8" NPT thread. DFG 4T.6T.8T models
have either 1/4" back or 3/8" end connections. All standard models employ Buna-N o-rings for leak
proof operation and are available with either backor end connections for horizontal or vertical piping.
Precision metering valves in brass or stainless steel are available.

Model

Measure Range

Screw thread

Accuracy

ml/min

(Liquid)

l/min

(Gas)

DFG-4T

6-60 8-80

40-400

0.1-1    0.2-2

0.25-2.5   1-12

1-10

directФ6

+4%

DFG-6T

25-250

16-160

80-400

100-500

100-600

200-800

100-1000

0.1-0.8

0.1-1.5

0.3-3 0.4-4

0.5-8 1-5

1-12 2-10

2-20   3-15

3-30 4-20

5-25   6-30

10-60 20-70

0.05-0.25M3/H

       M18*1.5

G1/4"

1/4"BSP

0.04-0.4M3/H

tube

DFG-8T

2.5-25LPH

4-40LPH

6-60LPH

0.16-1.6M3/H

0.1-1M3/H

0.2-2M3/H

        M18*1.5

G1/4"

1/4"BSP

Easy installation - All flowmeters have metal mounting inserts on rear for panel mounting.
They can also be supported directly by system piping.

Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available);
Metal Parts: brass standard, stainless steel optional; Float: stainless steel, acrylic, agate ball,
PTFF.depending on range.

Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C);
150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).

Accuracy:4% of full scale.

Process Connection: 1/4" NPT back connections or 3/8" NPT end connections.

Mounting Orientation: Mount in vertical position.
