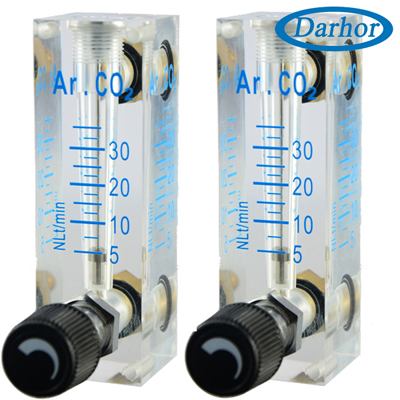

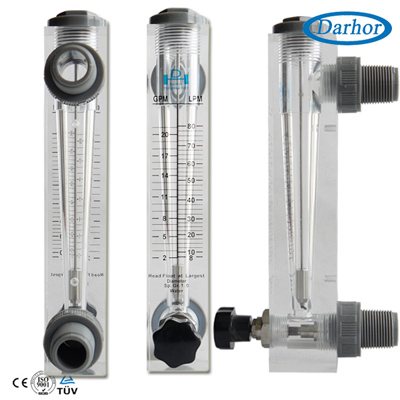

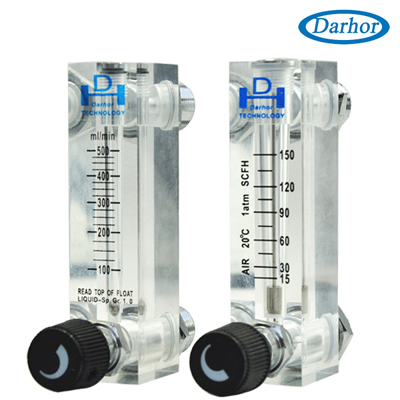

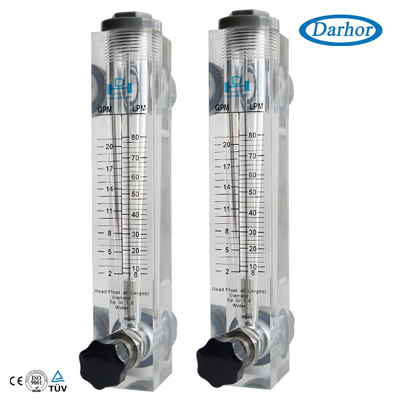

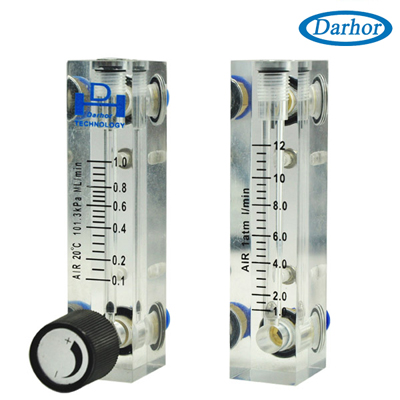

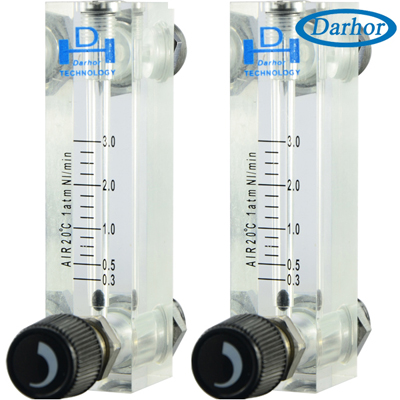

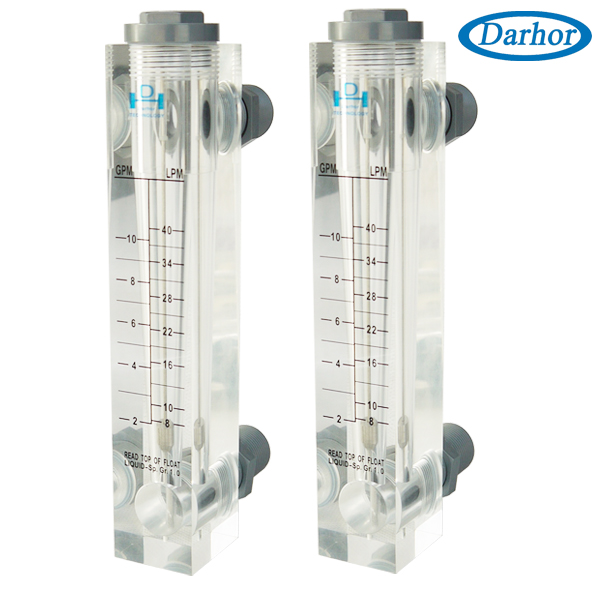

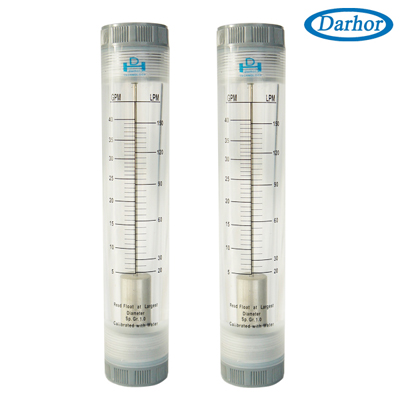

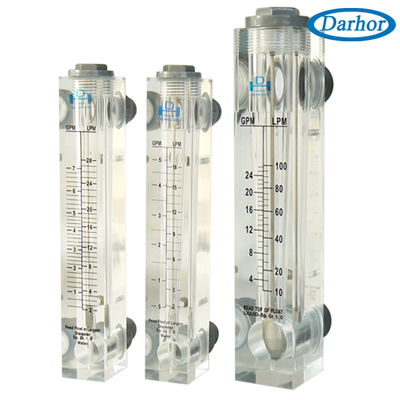

Panel mount flow meter
The flowmeter bodies are cut and precision machined from solid, clear acrylic plastic
blocks. This construction not only produces a handsome finished product, but permits complete
visual inspection. As a result, the flowmeters are especially popular for medical and laboratory
equipment applications.
Scales are easy to read - The front scale location and white background provides
excellent visibility. The direct reading scales are hot stamped into the plastic and will not
wear off. Mid-range calibration is established with a master flowmeter.
Durable and attractive construction - The machined acrylic bodies of the flowmeters are
practically unbreakable. The tapered bore is precision machined to a smooth surface that provides

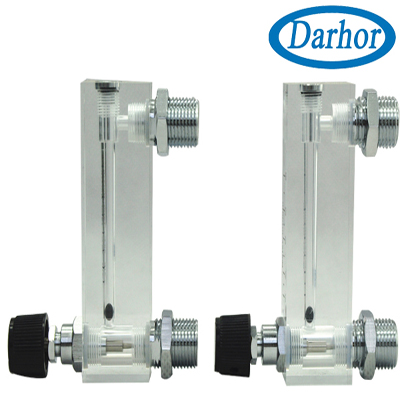

perfect visibility of the indicating float. The DFG 4T.6T.8T models are available with either brass
or stainless steel inlet and outlet connections and are tapped for 1/8" NPT thread. DFG 4T.6T.8T
models have either 1/4" back or 3/8" end connections. All standard models employ Buna-N o-rings
for leak proof operation and are available with either back or end connections for horizontal or
vertical piping.Precision metering valves in brass or stainless steel are available.
|
Model
|
Measure Range
|
Screw thread
|
Accuracy
|
|
ml/min
(Liquid)
|
l/min
(Gas)
|
|
DFG-4T
|
6-60 8-80
40-400
|
0.1-1 0.2-2
0.25-2.5 1-12
1-10
|
directФ6
|
+4%
|
|
DFG-6T
|
25-250
16-160
80-400
100-500
100-600
200-800
100-1000
|
0.1-0.8
0.1-1.5
0.3-3 0.4-4
0.5-8 1-5
1-12 2-10
2-20 3-15
3-30 4-20
5-25 6-30
10-60 20-70
0.05-0.25M3/H
|
M18*1.5
G1/4"
1/4"BSP
|
|
0.04-0.4M3/H
|
tube
|
|
DFG-8T
|
2.5-25LPH
4-40LPH
6-60LPH
|
0.16-1.6M3/H
0.1-1M3/H
0.2-2M3/H
|
M18*1.5
G1/4"
1/4"BSP
|
Easy installation - All flowmeters have metal mounting inserts on rear for panel mounting. They
can also be supported directly by system piping.
Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available);
Metal Parts: brass standard, stainless steel optional; Float: stainless steel, acrylic, agate ball,
PTFF.depending on range.
Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C);
150 psig (10 bar) @100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy:4% of full scale.
Process Connection: 1/4" NPT back connections or 3/8" NPT end connections.
Mounting Orientation: Mount in vertical position.
|
 |
