Pneumatic Hard Seal Butterfly Valve

Pneumatic Hard Seal Butterfly Valve


Product name:Pneumatic Hard Seal Butterfly Valve
Item:DHDV-P
Details:

Product name: Pneumatic Hard Seal Butterfly Valve
Model: DHDV-P

Nominal diameter: DN50~DN600

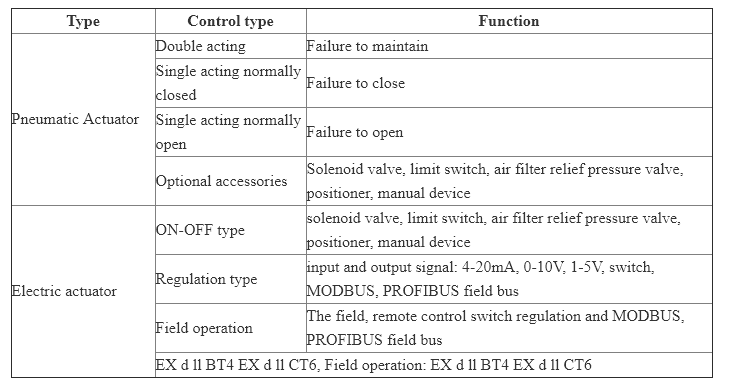

Acting mode: Double acting, single acting(sping return)
Pressure range: PN1.0~1.6MPa
Air supply pressure: 2.5~8bar
Output torque: 14~1170Nm
Angle of Rotation:90°±4°
Shell material: Aluminum Alloy Extruded
Body material cast iron
Sealing material:NBR, EPDM,FKM(VITON), PTFE(TEFLON)
Structure: Midline
End Connection: wafer, flange
Applicable media: control of water, air, gas, oil, liquid, steam
Temperature of media: -10~80℃ with NBR Sealing
Ambient temperature:-20~80℃
Application: Food&beverage, refining, desalination, petrochemical, chemical, pharmaceutical, textile, pulp&paper, mining, marine and power industries
