Pneumatic Thin Type Butterfly Valve

Pneumatic Thin Type Butterfly Valve


Product name:Pneumatic Thin Type Butterfly Valve
Item:DHDV-P
Details:

Product name: Pneumatic Thin type Butterfly Valve
Model: DHDV-P

Nominal diameter: DN15~DN200
Body material: Stainless steel

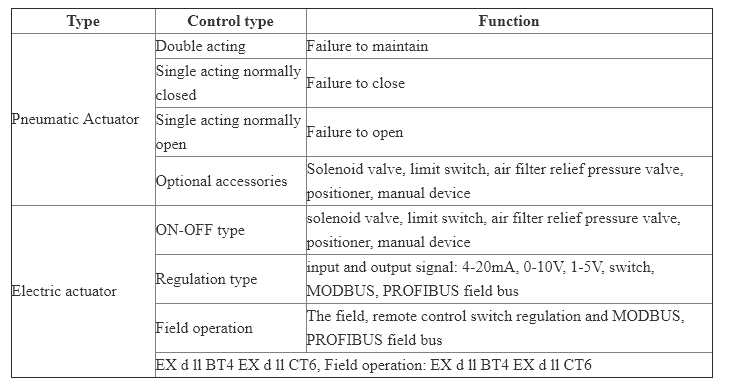

Control mode: ON-OFF type
Seal material: NBR, EPDM, FKM, VITON, PTFE
Shell material: Die-cast aluminum alloy( powder coated)
Output torque: 50~4000Nm
Angle of rotation: 90°±4°
90°Cycle time: 15s/30s/60s
Protection class: IP65
EXplosion proof: EX d ll BT4
Ambient temp:-20~60℃
