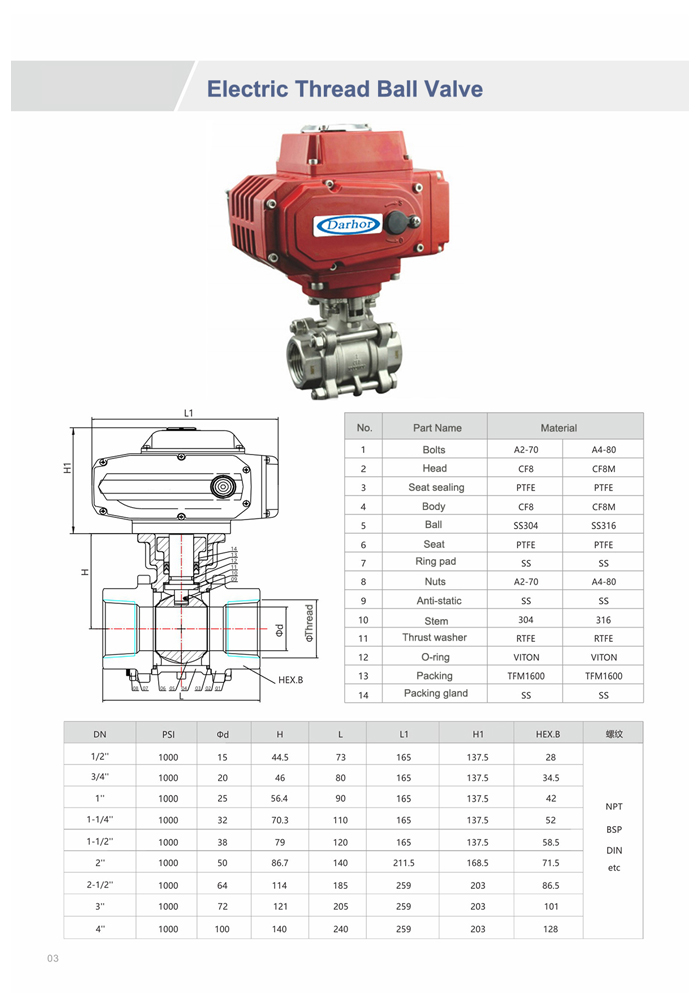

Electric 2 way Thread Ball Valve

Electric 2 way Thread Ball Valve


Product name:Electric 2 way Thread Ball Valve
Item:DHBV-E
Details:
Product name:Electric 2 way Thread Ball Valve
Model: DHBV-E

Nominal diameter:DN15~DN100
Body material: WCB, 304, 316, 316L
Connection: Thread
Pressure range: PN1.6~PN6.3MPa
Structure: Float ball core

Thread type: G, NPT, BSPT, BSP, DIN259/2999
Top flange:ISO5211
Pressure testing: ISO5208, API598
Seat sealing:PTFE:-30~180℃, PPL:-30~250℃
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: water, liquid, gas, oil, acid, alkali corrosive medium
