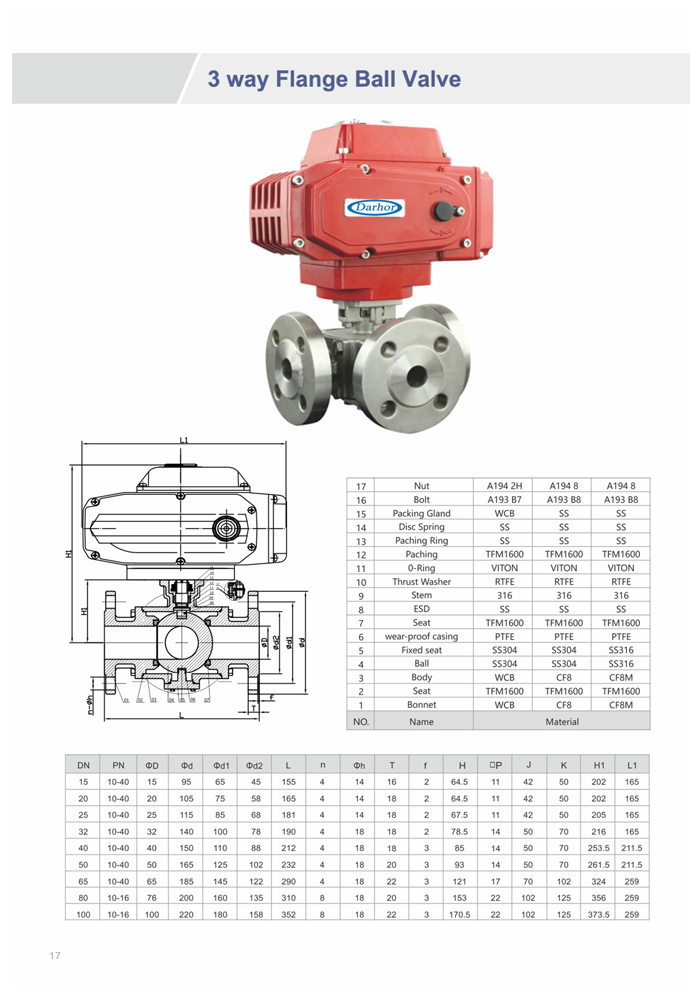

Product name: Electric 3 way Flange Ball Valve
Model:DHBV-E
Nominal diameter: DN15~DN200
Body material: WCB, 304, 316, 316L
Connection: Flange
Pressure range: PN1.6~4.0MPa
Structure:Float ball core
Seat sealing: PTFE: -30~180℃， PPL: -30~250℃
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: water, oil,steam,etc.
Performance
Fire protection design
ISO5211 standard direct mounting actuator
Antistatic device between the core and valve body
Stem explosion-proof design
Double stem packing conforms to the German TUV TA-LUFL steam leakage test
Double butterfly shaped spring automatic compression packing design
Allow pressure differential: Less than nominal pressure1.6MPa
Leakage: Zero leakage
Return difference:±2.5%
|
