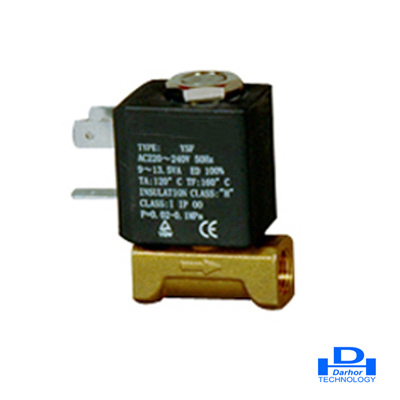

YSF022 series 2／2 way solenoid valve

YSF022 series 2／2 way solenoid valve
Product name：YSF022 series 2／2 way solenoid valve
Item：
Details：

YSF022 series 2／2 way solenoid valve

Technical parameters

型号Model

YSF022001.5

YSF022002.0

YSF022002.5

通径 Orifice（mm）

1.5

2

2.5

工作压差 Pre.(MPa）

0.02～1.2

0.02～1.0

0.02～1.0





Specifications:
1.Medium: steam, water
2.Working pre. 0.02～1.0Mpa
3.Wokring temp.:-5～180 ℃
4.Action mode: Direct acting
5.Type: Normally closed

6.Voltage: AC 220～240V
7.Voltage tolerance: ±10%
8.Insulation class: H
9.Life cycle: 500,000 times
10.Sealling material: Viton
11.Material: Brass
