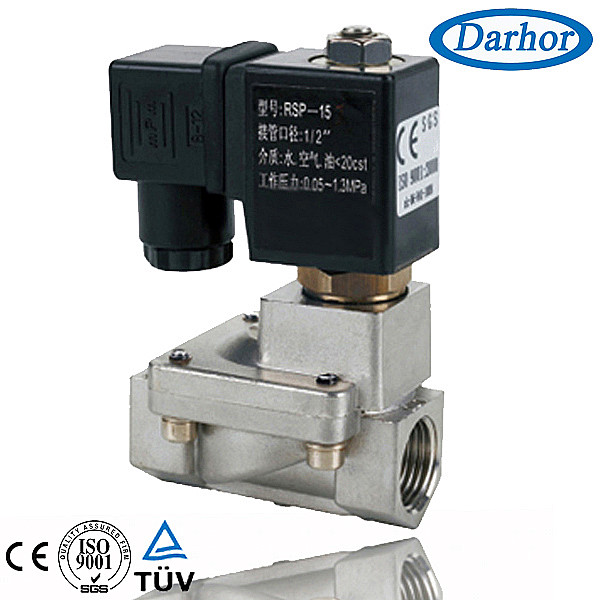

PARAMETERS
Model
|
RSP-10
|
RSP-15
|
RSP-20
|
RSP-25
|
RSP-35
|
RSP-40
|
RSP-50
|
G Connection
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1¼"
|
1½"
|
2"
|
Orifice Size
|
mm
|
13
|
13
|
20
|
25
|
35
|
40
|
50
|
Cv Value
|
3.5
|
4.5
|
7.6
|
12
|
22
|
30
|
48
|
L
|
mm
|
66.5
|
66.5
|
75
|
92
|
122
|
131
|
165
|
H
|
mm
|
112.5
|
112.5
|
118
|
124.5
|
137
|
150
|
165
|
H1
|
mm
|
96.5
|
96.5
|
98
|
104.5
|
112
|
121
|
130
|
Medium temperature ℃
|
-10 ÷80℃
|
Pressure
|
bar
|
Normally closed :0.5~13; normally open:0.5÷8
|
MAX. Pressure
|
bar
|
17bar
|
Power
|
AC:220V~AC:230V/50-60HZ 17VA; AC110 ~AC:120V/50-60HZ 13VA; DC24,11 W; DC12 14W ; Range:±10%
|
[Note] In case use for special pressure,voltages and so on,please state with your order.
Technical Specifications
Medium:Water,Air,Gas,Oil(blow 20cst)
Temperature:-10~80℃
Mode of action:Pilot operated
Pressure:Normally Closed(N/C):13bar
Normally Open(N/0):8bar
Body material:Brass
Sealing material:NBR
Protection class:IP65
Options
EPDM(E):suitable to water,hot water,gas,freon,theMAX.110℃;In case you choose EPDM,please state ‘E’ in your order.
Viton(V):suitable to hot water,acid,alkali,chemical salt,oil and hydrocarbon;te MAX,130℃.In case you choose Viton,please state ‘V’.
Note
Connection:Thread or Flange.
Thread:If different from Gconnection,it should be indicated.
Flange:If you need,please state in your order.
Pressure:In case you choose 17 bar,please state in your order.
