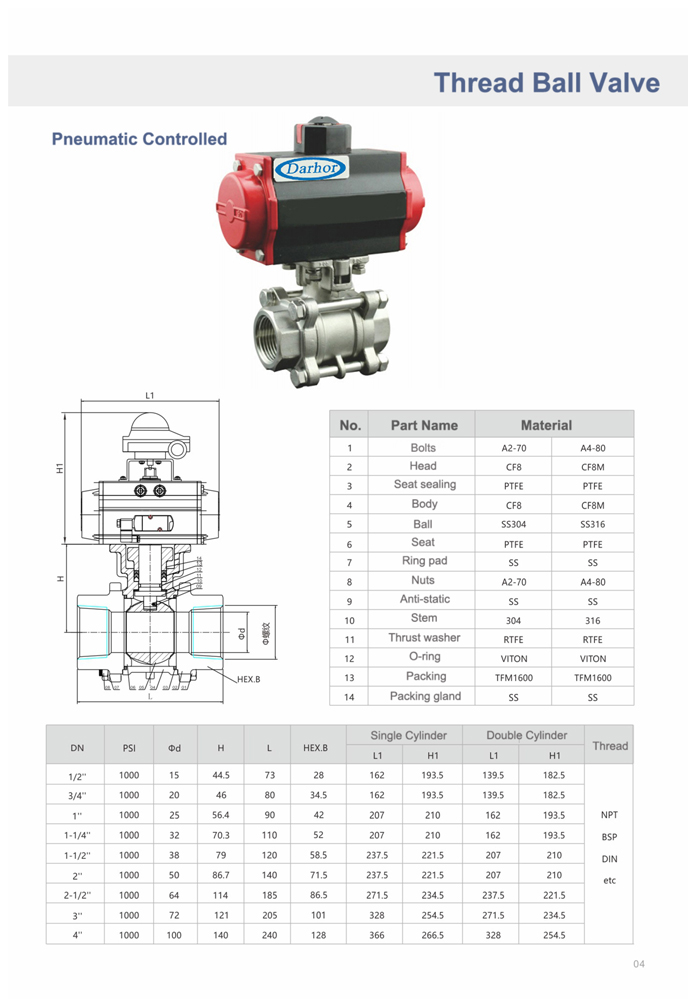

Pneumatic 2 way Thread Ball Valve

Product name：Pneumatic 2 way Thread Ball Valve
Item：DHBV-P
Details：
Product name:Electric 2 way Thread Ball Valve Model: DHBV-E Nominal diameter：DN15~DN100 Body material: WCB, 304, 316, 316L Connection: Thread Pressure range: PN1.6~PN6.3MPa Structure: Float ball core Thread type: G, NPT, BSPT, BSP, DIN259/2999 Top flange:ISO5211 Pressure testing: ISO5208, API598 Seat sealing:PTFE:-30~180℃， PPL:-30~250℃ Core material: 304, 316, 316L Stem material: 304 Applicable medium: water, liquid, gas, oil, acid, alkali corrosive medium
