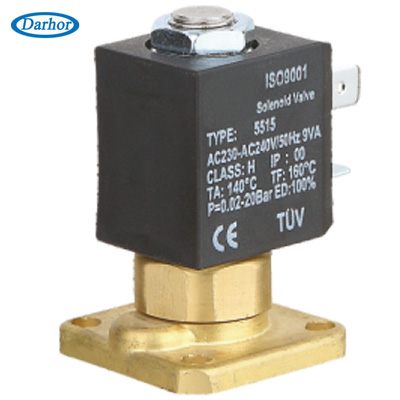

5515-05 panel type solenoid valve

5515-05 panel type solenoid valve


Product name:5515-05 panel type solenoid valve
Item:
Details:
55XX Series Direct Acting Solenoid Valve, 2WAY SMALL HOME APPLIANCES VALVE
Characteristic: 1.Direct acting miniature construction at low power consumption
                         2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                         3.Applied to low pressure system, open from 0 bar
Medium:           Air, Water, Steam, Oil, etc
Temperature:   NBR: -10℃ to 80℃
                        VITON: -10℃ to 150℃
Pressure:        55 series: 0 ~ 20 bar
Port Size:        1/8" and other
Port Thread:    BSPP, BSPT, NPT
Orifice (mm):   1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:           DC - 12V, 24V
                        AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:       +/- 10%
Coils:              SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:          Body - Brass
                       Seal -VITON,NBR,EPDM
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop - SS430F
                       Springs - SS 304
                       Shading Rings - Stainless Steel 304
5515-05
Media:         Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:         Brass
Pre:            0 – 20.0 Bar
Port:           Flange bracket
Orifice:      DN 1.0, 1.5, 2.0
Seal:         VITON







[Previous]      [Next]     [ Back ]




Related Products :

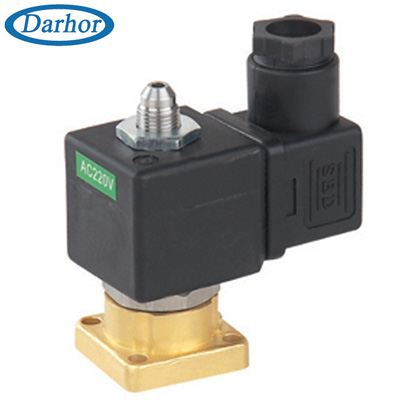

231S N/O panel type solenoid valve

231S N/O panel type solenoid valve

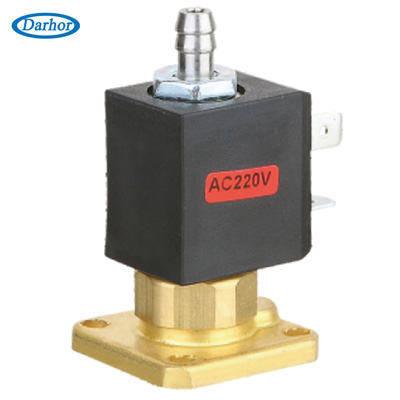

5515-04 panel type solenoid valve

5515-04 panel type solenoid valve

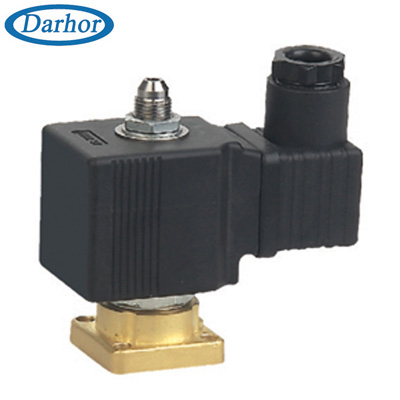

231W panel type solenoid valve
