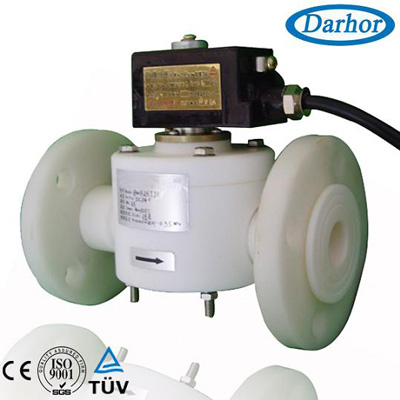

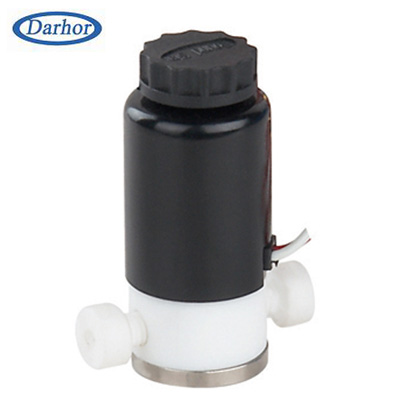

Characteristic:
|
1.With isolated diaphragm construction to rot proof
2.PTFE body for corrosion resistant
3.Suitable for applications with temperature below 80°C
4.an electromechanical valve for use with liquid or gas
|
|
Medium:
|
Corrosive fluid and gas, Acid, Alkali, etc.
|
|
Temperature:
|
PTFE Seal: -4F to 350F, -20 to 180
|
|
Pressure:
|
DHF-U: 0 ~ 3 bar NC
|
|
Port Size:
|
M8x1, 1/8”, 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”
|
|
Port Thread:
|
BSPP, BSPT, NPT
|
|
Orifice (mm):
|
12, 15, 20, 25, 32, 40, 50
|
|
Voltage:
|
DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
|
|
Tolerance:
|
+/- 10%
|
|
Coils:
|
S51B, 35VA (AC), 30W (DC), IP65, 100%ED
|
|
Material:
|
Body - PTFE
Seal - PTFE
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
|
PVC solenoid valve, Normally Closed, with Coil Y82B/YD1B
| Model |
Port Size |
Orifice(mm) |
Cv |
Min Pressure(bar) |
MAX Pressure(bar) |
| AC(6VA) |
DC(5W) |
| DHF-3 |
1/8" |
3 |
0.22 |
0 |
3 |
3 |
| DHF-10 |
3/8" |
10 |
3.2 |
0 |
3 |
3 |
| DHF-15 |
1/2" |
15 |
3.5 |
0 |
3 |
3 |
| DHF-20 |
3/4" |
20 |
7 |
0 |
3 |
3 |
| DHF-25 |
1" |
25 |
11 |
0 |
3 |
3 |
| DHF-P-15 |
1/2" |
15 |
3.5 |
0 |
3 |
3 |
| DHF-P-20 |
3/4" |
20 |
7 |
0 |
3 |
3 |
| DHF-P-25 |
1" |
25 |
11 |
0 |
3 |
3 |
| DHF-P-32 |
1 1/4" |
32 |
14 |
0 |
3 |
3 |
| DHF-P-40 |
1 1/2" |
40 |
24.5 |
0 |
3 |
3 |
| DHF-P-50 |
2" |
50 |
35 |
0 |
3 |
3 |
| DHF-P-15F |
Flange connection |
15 |
3.5 |
0 |
3 |
3 |
| DHF-P-25F |
25 |
11 |
0 |
3 |
3 |
| DHF-P-32F |
32 |
14 |
0 |
3 |
3 |
| DHF-P-40F |
40 |
24.5 |
0 |
3 |
3 |
| DHF-P-50F |
50 |
35 |
0 |
3 |
3 |
|
