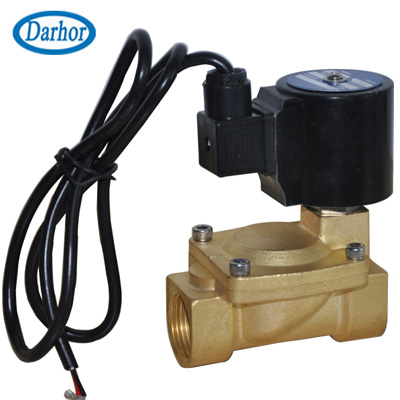

DHDF-O normally open brass fountain solenoid valve

Product name：DHDF-O normally open brass fountain solenoid valve
Item：
Details：
Fountain with solenoid valve DHDF Characteristic: 1. with diaphragm construction for fountain use matched with watertight coil 2. Opening speed at 10 times per second Medium: Water Temperature: NBR Seal: 14F to 176F, -10 to 80 EPDM Seal: 14F to 250F, -10 to 120 VITON Seal: 14F to 300F, -10 to 150 Pressure: DHDF: 0 ~ 5 bar Port Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", F2 1/2", F3", F4" Port Thread: BSPP, BSPT, NPT, Flange Orifice (mm): 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150 Voltage: DC - 12V, 24V AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ Tolerance: +/- 10% Coils: F14B, 26VA (AC), 13W (DC), IP68 100%ED Material: Body - Brass,stainless steel or plastic Seal -NBR, EPDM, PTFE or VITON Armature Tube - Stainless Steel 304 Plunger - Stainless Steel 430F Stop -SS430F Springs - SS 304 Shading Rings - Stainless Steel 304 DHDF Normally Open, with Coil F14B
