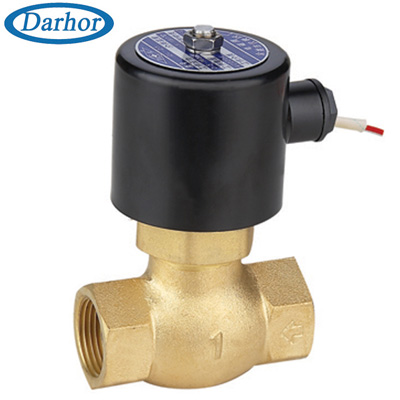

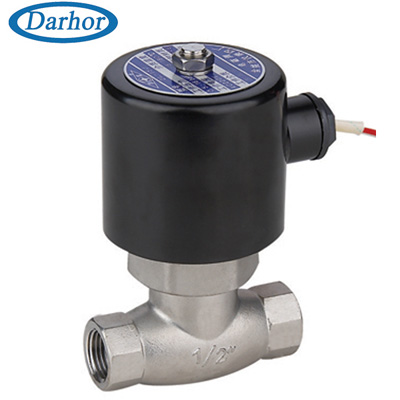

DHPS31-S Steam solenoid valve

Steam solenoid valve DHPS31

Characteristic: 1.Direct lifting piston construction with high frequency
                     2.Opened from 0 pressure with large flow rate
                     3.Applied to low pressure system
Medium:         Steam and Hot Water, Oil, Civil gas
Temperature:   PTFE Seal:  -4F to 250F, -20 to 180
                      VITON Seal: 14F to 300F, -10 to 150
Pressure:        DHPS31: 0 ~ 10 bar
Port Size:        3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread:    BSPP, BSPT, NPT, Flange
Orifice (mm):    12,15,20,25,32,40,50
Voltage:          DC - 12V, 24V
                      AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:       +/- 10%
Coils:          S21H, 22VA (AC), 15W (DC), IP65, 100%ED
Material:      Body - Stainless steel
                  Seal -PTFE or VITON
                  Armature Tube - Stainless Steel 304
                  Plunger - Stainless Steel 430F
                  Stop -SS430F
                  Springs - SS 304
                  Shading Rings - Stainless Steel 304

                  Piston:  SS304
Specifications:

Port Size	Orifice	Cv	Min Pressure(bar)	Max Pressure(bar)		Valve Body	Coil
				AC(22VA)	DC(14W)
3/8"	12	4.5	0	10	10	DHPS3112 X X X	S21H
1/2"	15	4.5	0	10	10	DHPS3115 X X X	S21H
3/4"	20	9.3	0	10	10	DHPS3120 X X X	S21H
1"	25	12	0	10	10	DHPS3125 X X X	S21H
1 1/4"	32	24	0	10	10	DHPS3132 X X X	SD01H
1 1/2"	40	29	0	10	10	DHPS3140 X X X	SD01H
2"	50	48	0	10	10	DHPS3150 X X X	SD01H

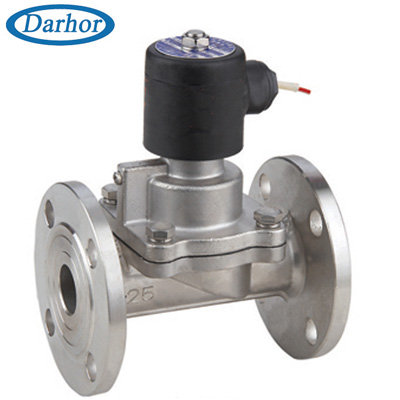

F1"	25	12	0	10	10	DHPS3125 X X X	S21H
F1 1/4"	32	24	0	10	10	DHPS3132 X X X	SD01H
F1 1/2"	40	29	0	10	10	DHPS3140 X X X	SD01H
F2"	50	48	0	10	10	DHPS3150 X X X	SD01H
