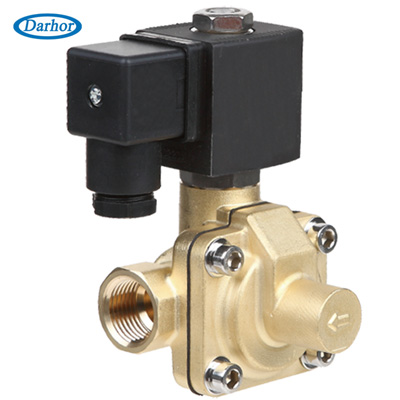

DHSV-25 lowe power solenoid valve

Specifications

1) Body material: Brass
2) Operating type: normally closed
3) Mode of action: 2/2-way, semi-direct lift type / semi-direct lift type
4) Sealing material: NBR or Viton; NBR is standard
5) Coil grade: class B, IP65
6) Suitable for applications with temperature below 80°C
7) Connection pipe size: PT 1/8" - 1"



Model		DHSV-025-06	DHSV-025-08	DHSV-130-10	DHSV-130-15	DHSV-250-20	DHSV-250-25
G Connection		1/8"	1/4"	3/8"	1/2"	3/4"	1"
Orifice Size	mm	2.5		13		25
Motion Pattern		Direct Action		Pilot Operated
Cv Value		0.23		6.2		23
L	mm	30		72		102
H	mm	76		103		120
H1	mm	66		88		95
Medium		-10 ~80
Pressure	bar	0.3 ~ 8
Power		AC:220V~AC:230V/50-60HZ  4.5VA; DC24  6W;    Range:±10%,
