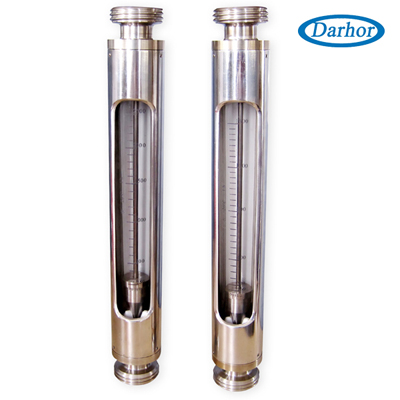

VA30 sanitary glass flow meter
VA30S glass rotameter are the new products of our company, compared with the other domestic products
of the same type, it has advantages of high measuring precision, good interchangeability, multiple
connection ways, especially the value of flow rate of the flow meter is in millimeter scale mark,
which is capable of providing actual flow scale according to the temperature, pressure, density,
and viscosity of different flows, solving the problem of indication correction.
Specification
|
DN
(mm)
|
Model
|
Measure Range
|
Tube Length(mm)
|
Working
Pressure(Bar)
|
Temp.
|
|
Water (L/h)
|
Air (m3/h)
|
|
15
|
VA30S-15
FA30S-15
|
4-40
6-60
10-100
16-160
25-250
40-400
63-630
|
0.12-1.2
0.3-3
0.5-5
0.8-8
1.2-12
2-20
|
300
|
≤1.0
|
-20℃~200℃
|
|
25
|
VA30S-25
VA30S-25
|
63-630
100-1000
160-1600
250-2500
|
2-20
3-30
5-50
8-80
|
≤1.0
|
|
40
|
VA30S-40
FA30S-40
|
160-1600
250-2500
400-4000
|
5-50
8-80
12-120
|
≤0.9
|
|
50
|
VA30S-50
FA30S-50
|
400-4000
630-6300
1000-10000
4000-16000
|
12-120
20-200
30-300
|
≤0.7
|
Installation and Drawing Size
|
(mm)
|
A×B
|
VA30S Screw Install
|
FA30S Flange Install
|
|
L1
|
C
|
D
|
L2
|
E
|
F
|
n-G
|
|
15
|
26×236
|
344
|
￠38
|
G1/2’’
|
348
|
￠65
|
￠95
|
4-￠14
|
|
25
|
34×226
|
348
|
￠55
|
G 11/2’’
|
348
|
￠85
|
￠115
|
4-￠14
|
|
40
|
44×226
|
370
|
￠70
|
G1’’
|
370
|
￠110
|
￠145
|
4-￠18
|
|
50
|
60×216
|
380
|
￠90
|
G2’’
|
370
|
￠125
|
￠160
|
4-￠18
|
