Variable area flowmeter |
|
|
| Product name：Variable area flowmeter |
| Item：USD200-600/piece |
| Details： |

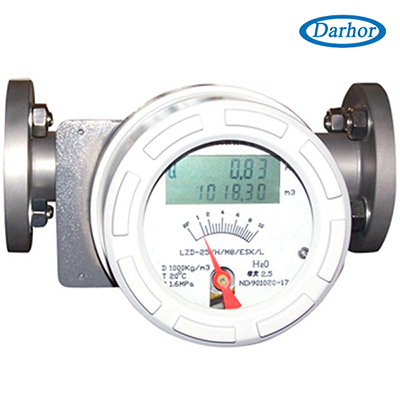

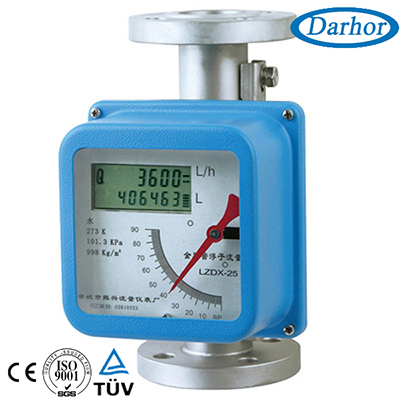

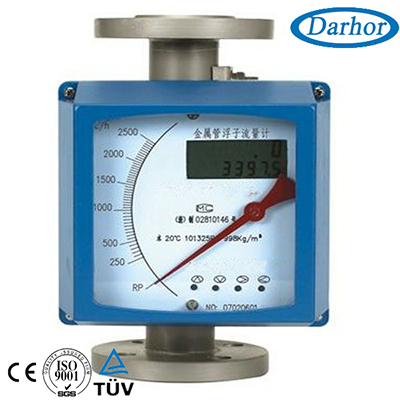

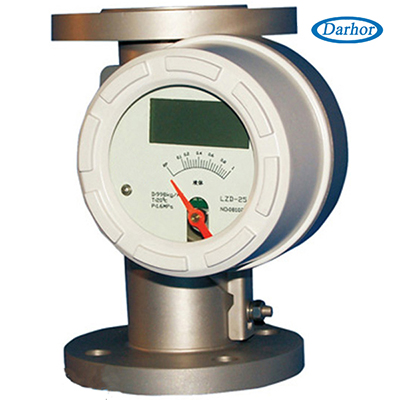

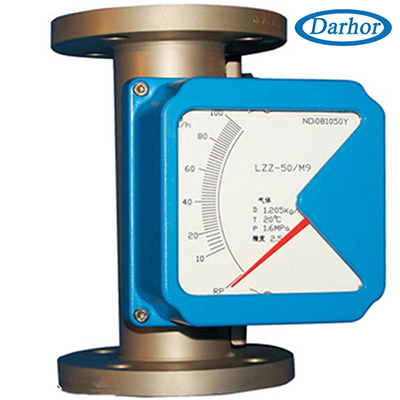

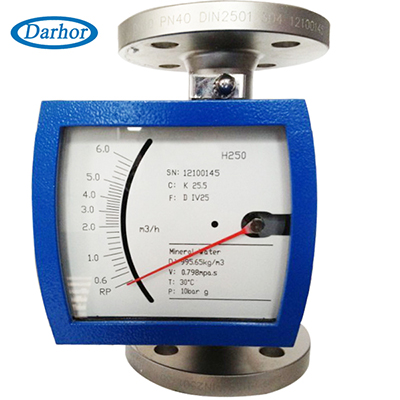

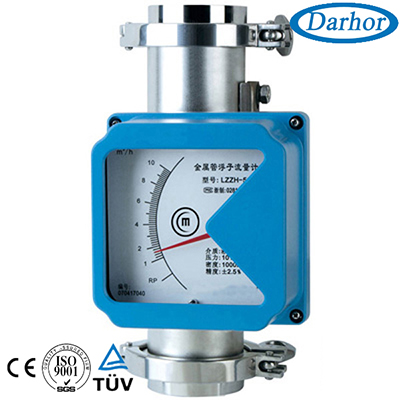

Variable area flowmeter
DH250 series variable area flowmeter is a kind of measuring meter which has local indication type and LCD displaying instantaneous/ accumulated flow rate, upper-limit and lower-limit alarm output, accumulative pulse output, batch control, standard two-wire 4-20mA current output, HART communi-cation, ect. Our product is good replacement of Krohne H250, ABB FAM540 and other similar rotamet- ers and widely used in the process control of industrial automation.
You may see our product is wildly used in many industries such as petrochemical, steel and iron, electric power, metallurgy, light industry, food, pharmacy and water processing of domestic China and
worldwide.
Variable Area Flow meter Intelligent metal tube rotameter is a high-tech product, the use of stable,
reliable and has good prospects for use.
It is mainly used in liquid, gas flow measurement and automatic control system in the oil, chemical,
pharmaceutical, food and other industries.
Features
• Firm work, little maintenance and long life
• Low requirements to straight pipe part
• Broader ratio of flow rate 10:1
• Two-wire LCD indicator; instant/accumulated display of flow rate are available; backlight option.
• Single axis and sensitive display
• Rotation of non-contact magnetic coupling
• Can be applied to hazardous occasions such as flammable and explosive ones
• All-metal structure, fit for high temperature, high pressure and mediums with strong erosion.
• power supply such as two-wire system, battery, alternating current option
• Multi-parameters calibration function
• Function of date recovery, date copy and power-off protection
|
Meter Model
|
DH250 Series
|
|
Flow range
|
Water 2.5 l/h to 200 m3/h
Air 0.07 to 4500m3/h (201.013bar)
|
|
Flow span
|
10:1
|
|
Accuracy
|
Standard accuracy: 1.5% High accuracy: 1.0%
Standard accuracy (PTFE-Liner): 2.5% High accuracy (PTFE-Liner): 1.5%
|
|
Connections
|
Flange connection
Standard: DIN2501DN15-DN200 ）
Special: DIN2512DN15-DN200
ANSI1/2-8
The GB JIS users needs
Threaded fittings DIN11851SC40-SC80[1-1/2-3 〃]
According to demands of users
|
|

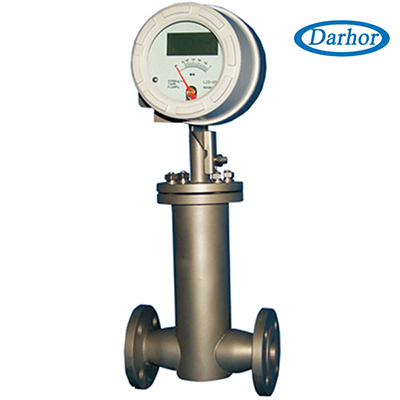

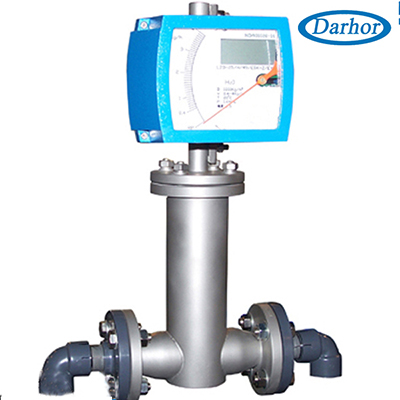

Steam Jacket Connections
|
Internal threads 1/2
NPT
Flange connection DN15 PN40 DIN2501
According to demands of users
|
|
Max.Allow. pressure
|
250bar
|
|
Temperature range
|
Fluid temperature
-40 to+200Standard type
-20 to+125PTFE-Liner type
-40 to+400High temperature type
Ambient temperature
-40 to+70
|
|
Materials
|
SS304、SS304L、SS316、SS316L
PTFE-Liner
Hastelloy C
Ti
According to demands of users
|
|
Protection class
|
IP67
|
|
Supply power
|
12-28V DCtwo-wire systembattery power
|
|
Ex-Design
|
|
|
 |
