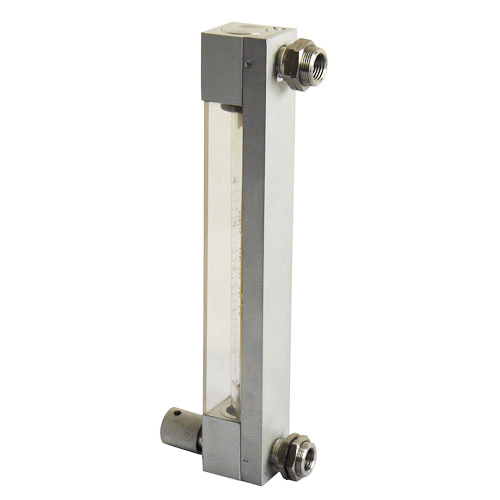

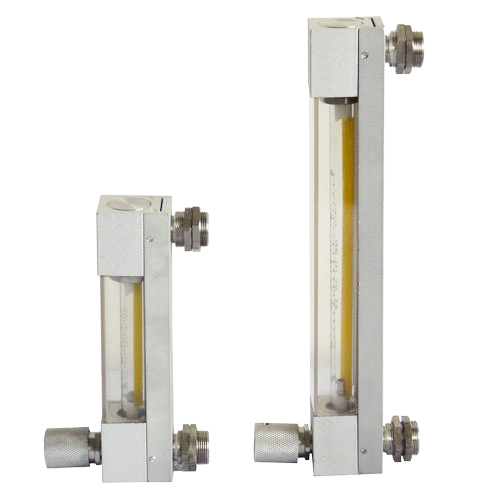

Fitting of this series is high precision flowmeters made of SS304 or aluminium, It is applicable to integration of
measuring equipment, and service of research department etc.The design with panel permits easy installacion.
Technical Parmeters of DK 100/DK200 Series
| Water(L/min) | Air(NL/min) | Thread | Accuracy |
| 20-200ml/min | 0.3-3 | （F）1/8"NPT | ±2.5% |
| 30-300ml/min | 0.5-5 | ||
| 50-500ml/min | 1-10 | （F）1/4"NPT （F）1/4"BSP | |
| 0.1-1 | 2-20 | ||
| 0.15-1.5 | 3-30 | ||
| 0.2-2 | 5-50 |

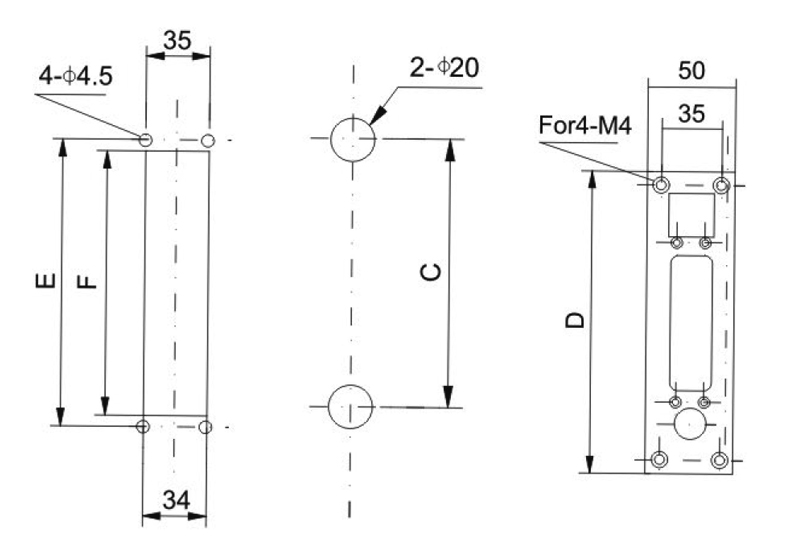

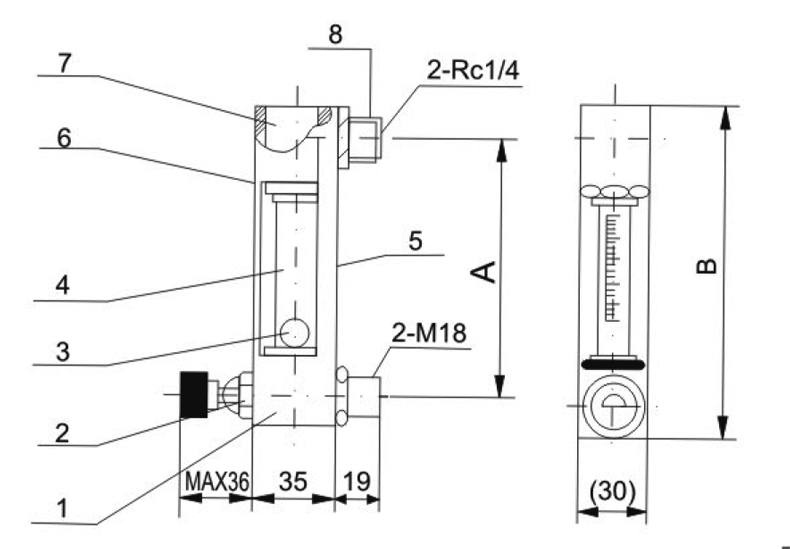

DK 100/DK200 Dimensions for Installation
| Size | DK100 | DK200 |
| A | 115 | 200 |
| B | 140 | 225 |
| C | 115 | 200 |
| D | 175 | 255 |
| E | 160 | 283 |
| F | 145 | 227 |
