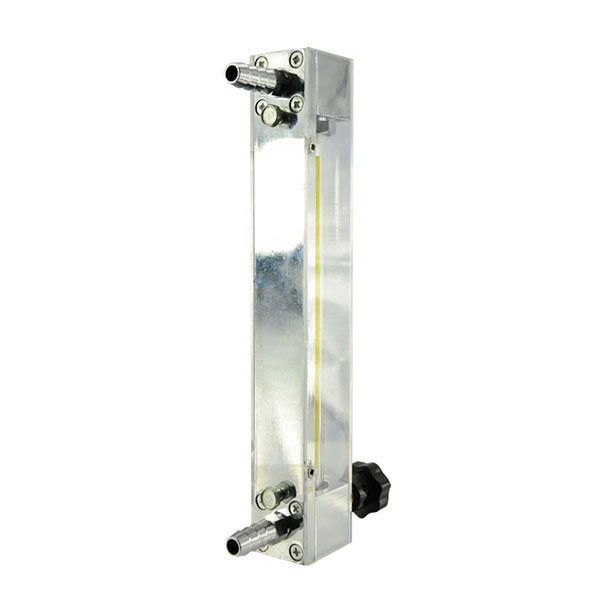

Glass rotameter flow meter is used to measure the instantaneous one-way nonpulsating Flux of liquid or gases in pipes Fields
such as chemical, petroleum, medicine, fertilizer, food, sugar refinery, paper marking, light industry, textile, printing and dyeing,
environmental production etc. PTFE, the high quality corroslon resistant material is used at the main contact parts of the corrosion
resistant glass rotameter to contact the medium.It has a very good performance of corrosion resistance in measuring various kinds
of flow of strong acis flow (except for hydroflucric acid), alkali, oxidant, strong oxidation acid,organic solvent and other erosive gases and liquids .
Technical Parameters of LZB-series Glass Rotameter :
Model Diameter (mm) | LZB-3 | LZB-4 | LZB-6 | LZB-10 | |
3 | 4 | 6 | 10 | ||
Range
|
Liquid I/h | 2.5-25ml/min | 1-10 | 1-10 | 6-60 |
4-40ml/min | 1.6-16 | 100-800ml/min | 10-100 | ||
6-60ml/min | 4-40 | ||||
10-80ml/min | 2.5-25 | 10-100 | 16-160 | ||
10-100ml/min | 3.6-36 | 6-60 | 25-250 | ||
Gas Nm3/h | 0.03-0.3l/min | 0.2-2.5l/min | 0.04-0.4 | 0.1-1 | |
0.06-0.6l/min | 0.16-1.6 | ||||
0.1-1l/min | 0.016-0.16 | 0.06-0.6 | 0.25-2.5 | ||
0.15-1.5l/min | 0.025-0.25 | 1-10 l/min | 5-50 l/min | ||
0-100l/h | 0.04-0.4 | 0.1-1 | 0.5-5l/min | ||
0.3-3l/h | 0.6-6 | ||||
0.6-7 | |||||
Accuracy （±%） | 4、6 | 2.5、4 | 2.5 | 2.5 | |
Working Pressure（MPa） | ≤0.6 | ≤1 | ≤1 | ≤1 | |

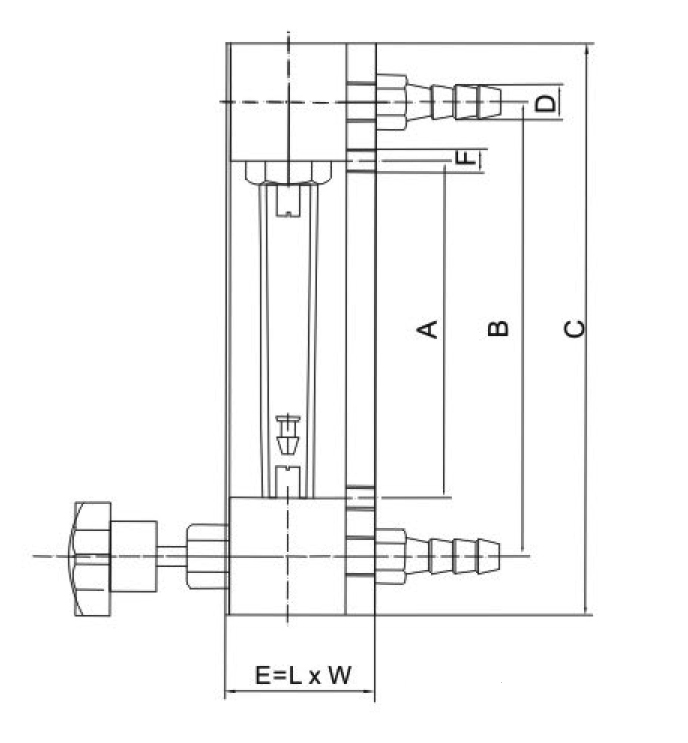

Chemical resistance rotameter:
Model | A | B | C | D | E | F |
LZB-3 | 116 | 136 | 8 | 26x25 | ||
LZB-4 | 178 | 204 | 234 | 9 | 39.5x34 | 2-M6 |
LZB-6 | 178 | 204 | 234 | 9 | 39.5x34 | 2-M6 |
LZB-10 | 178 | 208 | 238 | 12 | 39.5x34 | 2-M6 |
