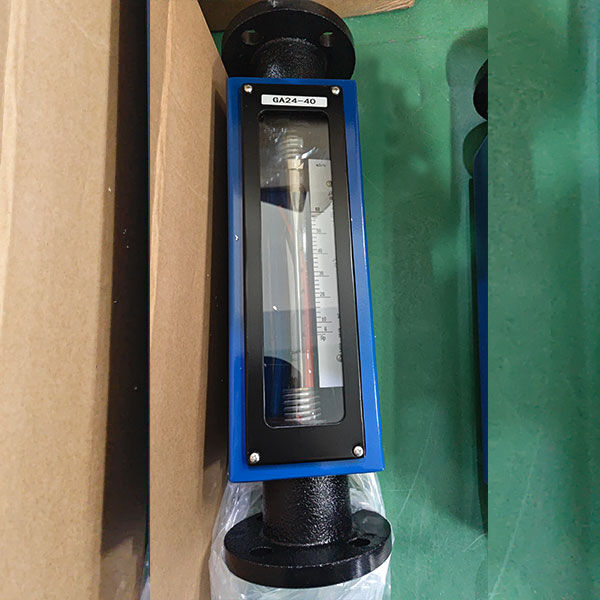

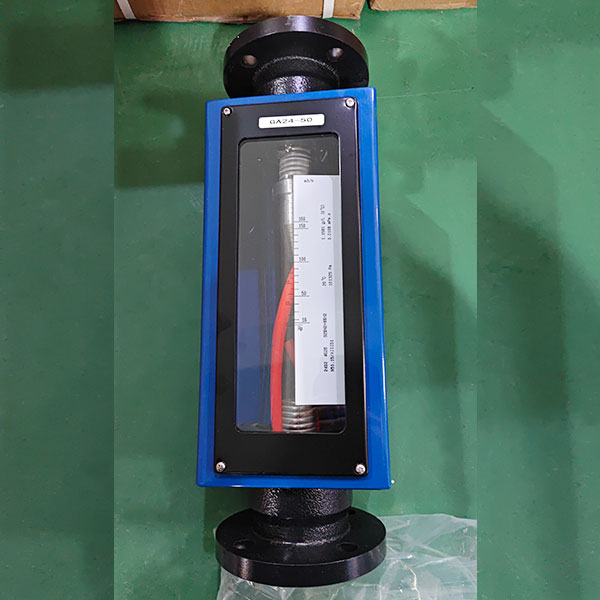

This series flow meter is one type of glassrotameter,compared with the products of the same type,it has
advantages of high measuring precision,great interchangeability.We can provide mm graduation scale,
percentage scale and dismountable scale,it os conbenient for different users to use.
Main Technical Parameters
DN (mm) | Model | Measure Range | Working Pressure(Bar) | Temp. | Accuracy | |
Water (L/h) | Air (m3/h) | |||||
15 | GA24-15 GA24-15F | 4-40 6.3-63 10-100 12-120 16-160 20-200 25-250 30-300 36-360 40-400 46-460 63-630 65-650 75-750 | 0.12-1.2 0.2-2 0.3-3 0.4-4 0.5-5 0.6-6 0.8-8 0.9-9 1.2-12 2-20 | ≤1 | -20℃~60℃ or -20℃~120℃ | 1.5 |
25 | GA24-25 GA24-25F | 40-400 50-500 63-630 80-800 100-1000 120-1200 160-1600 200-2000 250-2500 300-3000 | 1.6-16 2-20 2.5-25 3-30 4-40 5-50 6-60 | |||
40 | GA24-40 GA24-40F | 160-1600 20-2000 250-2500 300-3000 400-4000 500-5000 | 5-50 6-60 8-80 9-90 12-120 | ≤0.9 | ||
50 | GA24-50 GA24-50F | 250-2500 300-3000 400-4000 500-5000 630-6300 800-8000 1000-10000 1500-15000 4000-16000 | 10-100 12-120 16-160 20-200 30-300 | ≤0.7 | ||

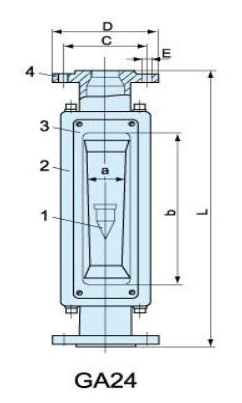

GA24 Outline Dimension
Diameter (mm) | Display Window Size a×b | L | C | D | E |
15 | 37×302 | 500 | 65 | 95 | 4－14 |
25 | 52×294 | 85 | 115 | ||
40 | 64×278 | 110 | 145 | 4－18 | |
50 | 94×266 | 125 | 160 | ||
65 | 124×260 | 145 | 180 | ||
80 | 124×260 | 160 | 200 | 8－18 |
