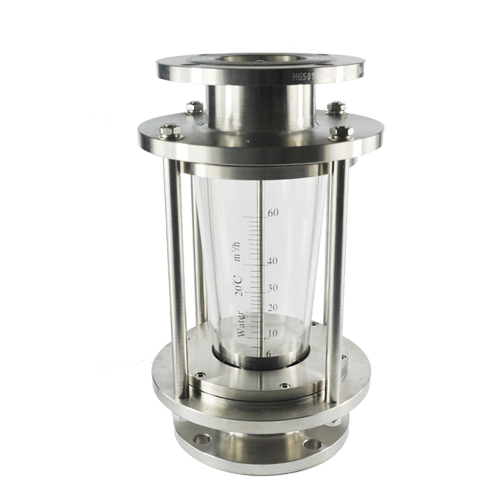

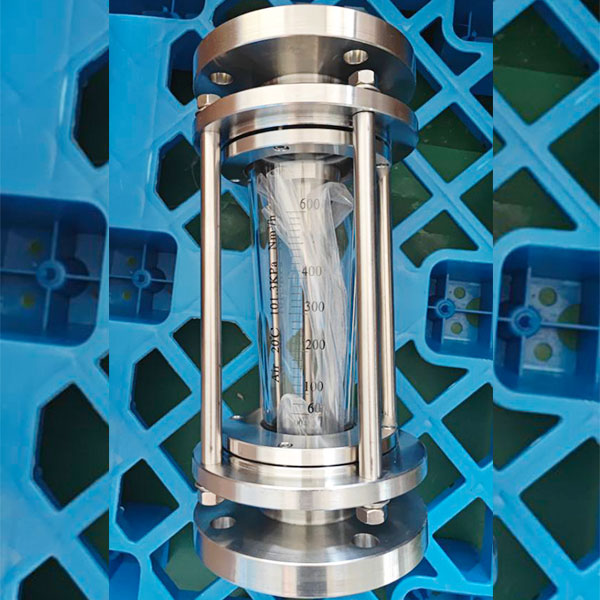

FA40 Glass Rotator Flowmeter,This flowmeter is highly sensitive and works in a wide range with low pressure loss,
beside other advantage e.g. easy to operate etc. It is usually used for low pressure,high temperature sheer liquid or gases
without suspending patticles and has been widely employed in industries e.g. petroleum, chemicals, environmental
protection, power supply and medicine etc.
Main Technical Parameters
DN | Range | Working Pressure(Mpa) | |
Water(L/h) | Air(NL/min) | ||
15 | 30-300 60-600 80-800 | 10-100 20-200 25-250 |
≤ 0.8 |
20 | 90-900 120-1200 180-1800 | 20-200 30-300 50-500 | |
25 | 180-1800 300-3000 480-4800 | 50-500 100-1000 150-1500 | |
32 | 480-4800 600-6000 720-7200 | 200-2000 250-2500 300-3000 |
≤ 0.6 |
40 | 1-10m3/h 1.2-12m3/h 1.5-15m3/h | 18-180Nm3/h 20-200Nm3/h 25-250Nm3/h | |
50 | 1.2-12m3/h 1.5-15m3/h 1.8-18m3/h | 20-200Nm3/h 25-250Nm3/h 30-300Nm3/h | |
65 | 1.8-18m3/h 3-30m3/h 4-40m3/h | 25-250Nm3/h 35-350Nm3/h 40-400Nm3/h |
≤ 0.4 |
80 | 4-40m3/h 5-50m3/h 6-60m3/h | 40-400Nm3/h 50-500Nm3/h 60-600Nm3/h | |
100 | 6-60m3/h 7-70m3/h 10-100m3/h | 60-600Nm3/h 70-700Nm3/h 90-900Nm3/h | |

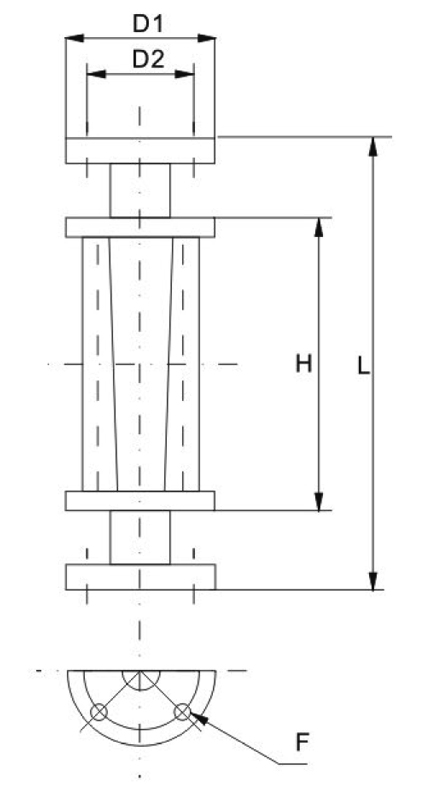

FA40 Outline and Installation Dimensions(mm)
| Model | FA40-15 | FA40-20 | FA40-25 | FA40-32 | FA40-40 | FA40-50 | FA40-65 | FA40-80 | FA40-100 |
| L | 260 | 340 | 340 | 340 | 340 | 340 | 390 | 390 | 410 |
H (Glass tube ekngth) | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 |
| D1 | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 185 | 205 |
| D2 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 150 | 170 |
| F | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 4-18 | 4-18 |
