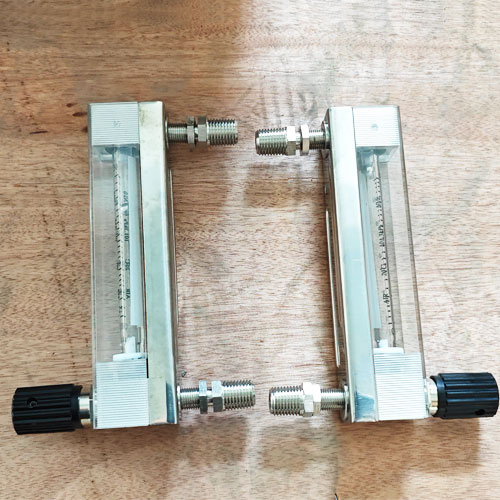

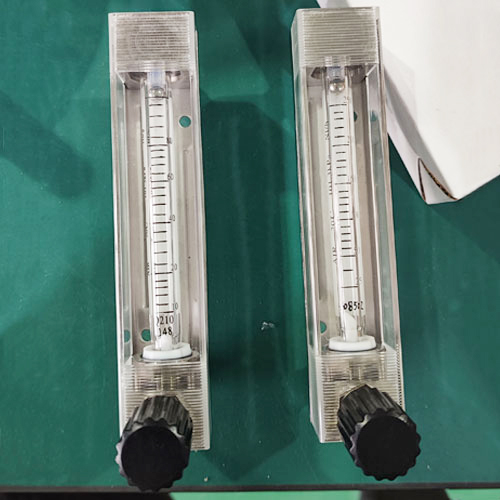

DK800 series glass rotameter,The compacted flowmeter is suitable for measuring and regulating small flowrate.
Smart design permitsconvenient replacement Of(tapered glass)tube and float with the flowmeter staying in the
pipe run .It can be connected to either Hoses or metal pipes.
Main Technical Parameters

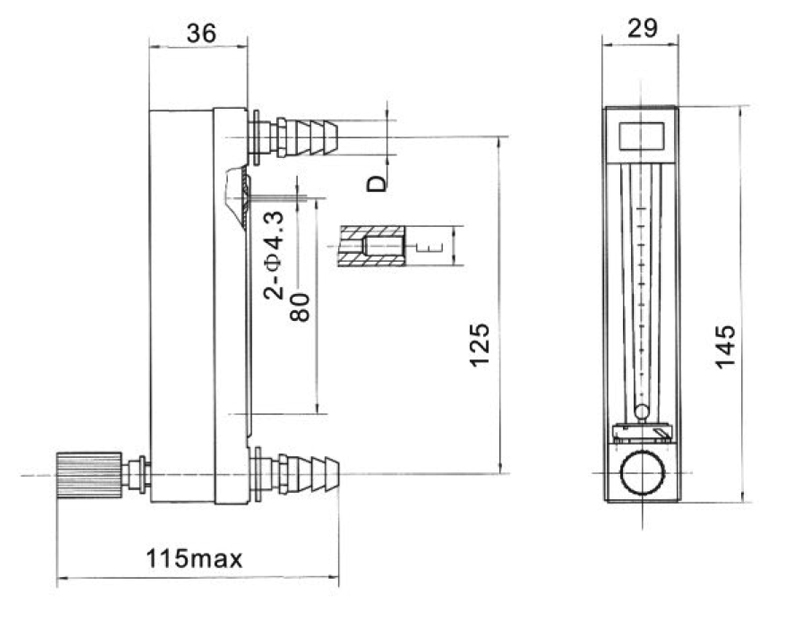

Model | Diameter （mm） | Range (L/h) | Accuracy （+%） | Media State | D | E | Out Diameter Of Metal Pipe (mm） | ||
| Water20℃ | Air 101325Pa2℃ | Working Temperature | Working Pressure | ||||||
DK800-4 DK800-4F | 4 | 0.25~2.5 | 0.5~5 0.8~8 1.6~16 4~40 6~60 | 2.5 | -20℃~+120℃ | ≤1.0MPa | 11 | M10×1 | 6 |
DK800-6 DK800-6F | 6 | 0.5~5 1.2~12 2.5~25 4~40 6~60 10~100 16~160 | 10~100 25~250 50~500 80~800 100~1000 180~1800 240~2400 300~3000 350~3500 430~4300 | ||||||
