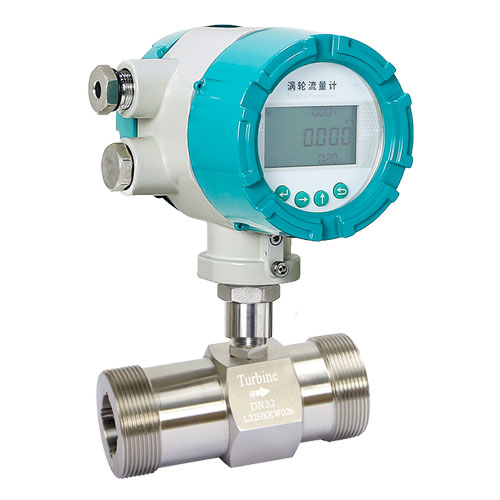

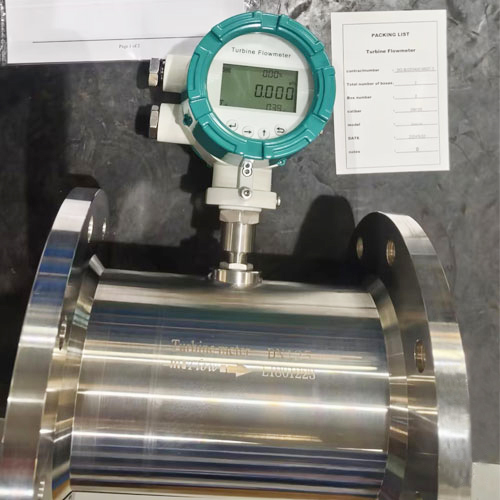

DH500-C Digital display Turbine flow meter 4-20mA output

Turbine flow meters have the features: high accuracy, good repeatability,convenient installation/maintenance, simple structure etc.

Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, anelectrical signal is generated in the pickup coil. This signal is converted into engineering units(liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessorymodules can be used to export the signal to other equipment.

Upon receipt, examine your meter for visible damage. The turbine is a precision measuringinstrument and should be handled carefully. Remove the protective plugs and caps for athorough inspection. If any items are damaged or missing, contact SURE

Make sure the turbine flow model meets your specific needs. For your future reference, it mightbe useful to record this information on nameplate in the manual in case it becomes unreadableon the turbine. Refer to the nameplate for your customized product's specification.
